• Thread Length: 6.0mm, 9.0mm, 12.0mm, 15.0mm
• Thread Diameter: Ø2.0mm
• Neck Length: 3.0mm
• Neck Diameter: Ø2.5mm
• Material: Titanium Grade 5 (TI-6AL-4V ELI)

• Condition: Sterile Blister
• Compatible Anchor Driver: 1.25mm Hex Driver
• Compatible Cover Screw Driver: GDT Motor Mount Driver For GBR Screws
• Country of Manufacture: Israel

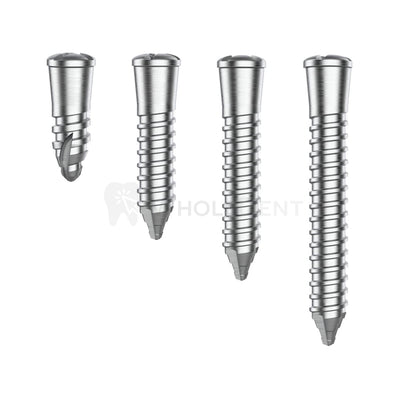

GDT GBR Locking Tenting Screw represents an advanced two-component locking device in GBR (Guided Bone Regeneration) treatments, used to secure membrane barriers. Specifically engineered to address 1-2-3 wall deficiencies and horizontal as well as vertical bone augmentations, it stands as a solution at the forefront of regenerative dentistry.

GDT GBR Locking Tenting Screw amplifies the efficacy of GBR techniques, comprising a dynamic duo: an anchor and a cover screw. The anchor, distinguished by its aggressive tip shape, effortlessly engages in self-drilling into the bone, simplifying installation and removal with a 1.25 hex driver. This unique attribute allows for precise positioning without the need for an additional drill.

Reliable membrane fixation is achieved through the polished neck at the upper section of the anchor, featuring an entry point for the cover screw. The GDT GBR Motor Mount is employed to effortlessly tighten or remove the cover screw, ensuring a secure connection between the cover screw and the anchor.

The user-friendly design of this system minimizes the risk of lateral displacements or intrusion, streamlining membrane deployment and fastening processes. In the realm of securing robust membranes such as titanium mesh plates during surgical interventions, the GBR Precision Locking Tenting Screw emerges as an exceptionally dependable choice. Its aggressive tip and thread design engage with the bone, allowing for precise placement with minimal drilling—excluding cases involving cortical bone, where preliminary drilling is recommended to ensure unparalleled stability throughout the entire treatment. Trust in the GDT GBR Precision Locking Tenting Screw for a reliable, precise, and efficient approach to GBR procedures.

Advantages:

• Reliably anchor membranes for enhanced stability.
• Achieve accuracy and consistent outcomes
• Made from a biocompatible titanium alloy - Titanium Grade 5
• Ensures patient safety without compromise.
• Streamlines the treatment process, reducing overall time
• Incorporates an advanced design with a self-drilling tip, polished neck, and an expanded head for optimal performance.
