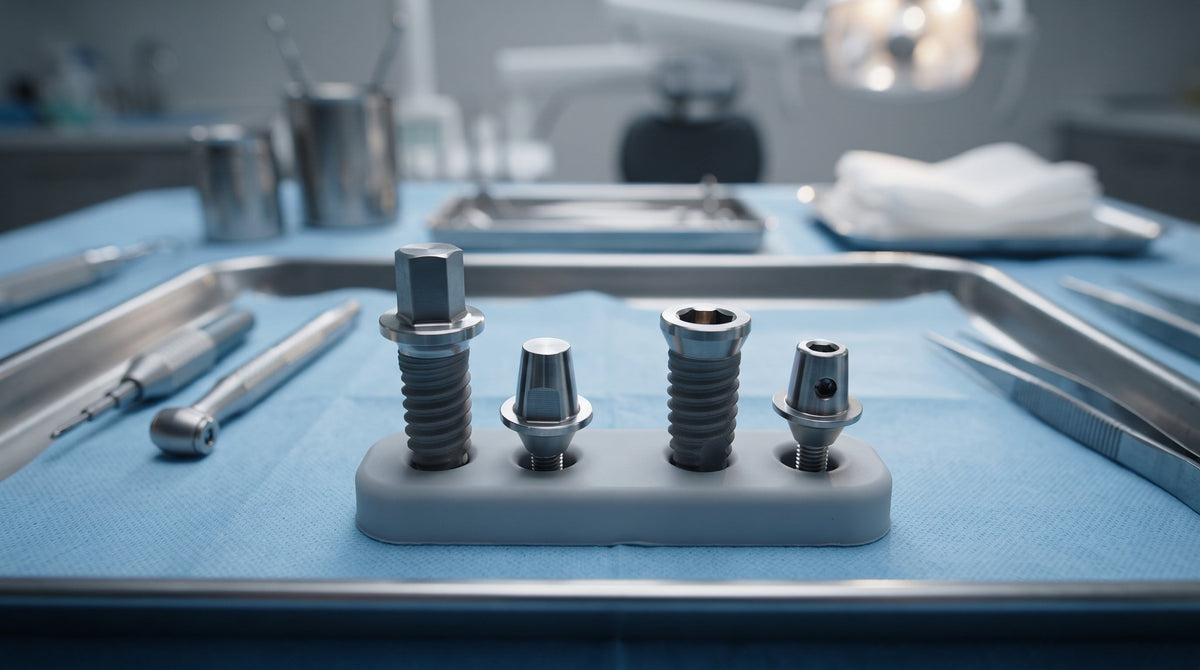

The internal vs external hex comparison concerns the geometry of the implant-abutment interface, not the external threads that engage bone. In an external-hex implant, the hexagonal indexing feature projects above the implant platform. In an internal-hex design, the corresponding geometry is recessed within the implant body.
Connection design influences abutment positioning, resistance to rotation, screw loading, restorative space, component compatibility, and maintenance. However, connection type alone does not drive overall implant predictability. Implant position, prosthetic design, occlusal forces, component fit, tightening protocol, and patient-level risks remain important.
Identify the Connection Geometry
In an external-hex system, the abutment seats over a hexagonal projection at the coronal implant platform. The retaining screw passes through the abutment and engages the implant’s internal threads.
An internal-hex system places the antirotational geometry inside the implant body. The abutment extends into this internal recess, creating a deeper connection than a conventional external hex.
Neither design should be confused with a conical or Morse-taper connection. Although some internal connections combine hexagonal indexing with a conical interface, a basic internal hex and a taper-lock design use different engagement principles.
The implant record should therefore identify more than “internal connection.” It should document the manufacturer, implant line, platform, diameter, connection geometry, and restorative component.
Compare Mechanical Characteristics
Analyzing internal vs external hex performance requires assessing how each design manages rotational forces and screw-joint stability.
| Clinical Factor | Internal Hex | External Hex |
|---|---|---|
| Connection location | Recessed inside the implant | Projecting above the platform |
| Abutment engagement | Deeper internal engagement | Shallower coronal engagement |
| Antirotational control | Internal indexing surfaces | External hex projection |
| Restorative space | Component-specific | Component-specific |
| Component identification | Requires exact internal geometry | Requires exact external platform |
| Retrieval | Depends on screw and component condition | Depends on screw and component condition |
Internal connections may provide greater resistance to lateral and rotational movement because the abutment engages within the implant body. External-hex connections depend more heavily on accurate component fit, screw preload, and the dimensions of the projecting hex.
These are general design characteristics rather than guarantees. Manufacturing tolerances, material properties, screw design, tightening technique, restoration type, and loading conditions can alter mechanical performance.
Match Components by System and Platform
Selecting components during internal vs external hex restoration often begins after the implant has already been placed. The restorative team must identify the existing connection before ordering healing components, impression copings, scan bodies, analogs, screws, or definitive abutments.
A prosthetic component should not be selected based only on its platform diameter or visual resemblance. Two components with similar external dimensions may have different internal engagement, screw threads, indexing depth, or seating geometry.
When using Ti-base abutments, clinicians and laboratory teams should verify:
- Implant manufacturer and product line
- Internal or external connection
- Platform diameter
- Hex or indexing dimensions
- Screw type and thread
- Recommended driver
- Required tightening torque
- Restorative height and emergence profile
Do not combine components from different systems unless the component manufacturer specifically validates that compatibility. An apparently seated component may still produce incomplete engagement, rotational movement, screw instability, or damage to the implant connection.
Screw-Joint Behavior and Preload Dynamics
Clinical performance during internal vs external hex comparison relies heavily on the mechanics of the abutment screw. Tightening creates a preload that clamps the implant and abutment together. Functional forces, inaccurate fit, settling, insufficient torque, excessive torque, or repeated loading can reduce that preload.
A dental implant restoration includes multiple mechanical interfaces, and a complication at the abutment screw does not necessarily indicate loss of osseointegration. Clinicians should distinguish prosthetic screw loosening from implant mobility.
Internal engagement may help reduce bending forces on the screw by transferring some load through the connection walls. In an external-hex design, the screw joint and coronal hex geometry play a larger role in resisting lateral and rotational forces.
Research comparing these connections does not justify assuming that every internal-hex implant will outperform every external-hex implant. Clinical outcomes vary with system design, restoration type, follow-up duration, and loading conditions.
Plan the Surgical and Restorative Workflow Together
Connection selection affects both placement and restoration. An internal recess may require precise orientation when the definitive abutment has an indexed position. External-hex systems also require rotational alignment when using engaging components.
The surgical team should confirm that the implant mount, driver, and placement instruments match the connection. Compatible dental implant drills must also follow the selected system’s osteotomy sequence, implant dimensions, and drilling protocol.
Before surgery, confirm the availability of:
- Implant drivers
- Cover screws and healing abutments
- Impression or scanning components
- Laboratory analogs
- Temporary and definitive abutments
- Prosthetic screws
- Torque drivers
- Retrieval instruments
Selecting an implant without confirming the downstream restorative inventory can create delays or force unnecessary substitutions.
Choose the Connection for the Clinical Case
Selecting between internal vs external hex options requires avoiding universal claims that one geometry is inherently superior for every case.
Consider the following:
- Implant location and restorative space
- Single crown, bridge, or full-arch restoration
- Expected occlusal and lateral forces
- Need for indexed or non-engaging components
- Emergence-profile requirements
- Laboratory familiarity
- Digital-library availability
- Component inventory
- Maintenance and retrieval plan
- Existing implants in the patient
External-hex implants remain relevant in documented systems and established restorative workflows. Internal-hex designs are widely used because their recessed engagement can support antirotation and load transfer. The preferred connection is the one that provides validated components and a manageable clinical workflow for the planned restoration.
Diagnose Complications by Interface
Maintenance protocols for internal vs external hex connections should continue throughout long-term follow-up. Record the connection and component details so another clinician can identify the system without relying on appearance alone.
When screw loosening, restoration movement, or component fracture occurs, isolate whether the problem involves:
- The prosthetic restoration
- The abutment
- The fixation screw
- The implant connection
- The implant body
- The surrounding bone
Inspect the connection for wear, deformation, retained fragments, or contamination before placing a replacement component. Use the correct driver and manufacturer-specified torque. If the implant interface is damaged, repeatedly tightening a new screw may not correct the underlying problem.
Internal and external hex connections use different geometries to position the abutment and resist rotation. Internal designs provide recessed engagement, while external designs use a projecting coronal hex. Neither eliminates the need for accurate compatibility checks, controlled torque, passive prosthetic fit, and documented maintenance.
Explore Wholedent dental implant components and instruments engineered to support accurate platform identification, restorative compatibility, and long-term implant maintenance workflows. Confirming the exact implant system before ordering or seating a component remains the safest approach for either connection design.
